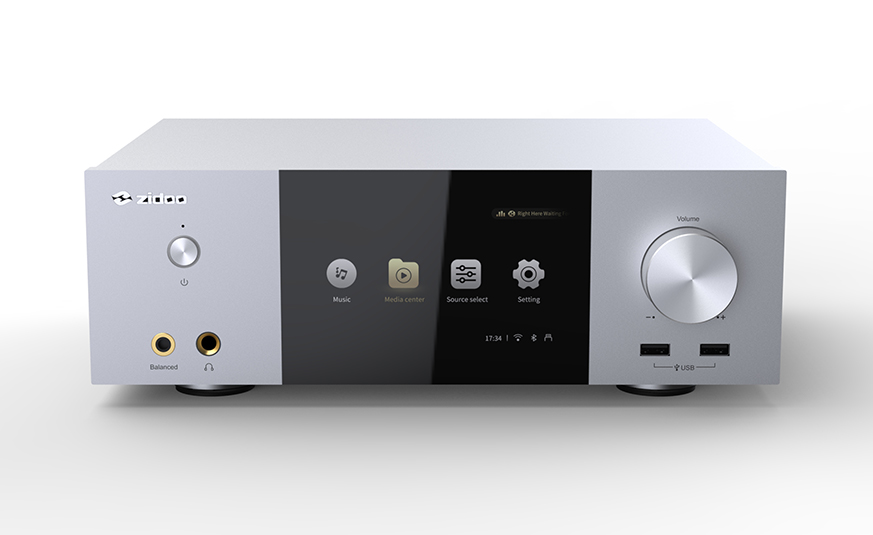

4K Hi-end Media player NEO S
Модель: NEO S
NEO S is a new product which is all-round, high-performance and cost-effective
Provide excellent audio and video quality to users
NEO S is an all-in-one device with functions like HiFi music digital decoding,
streaming playback, headphone amplifier functions and movie playback

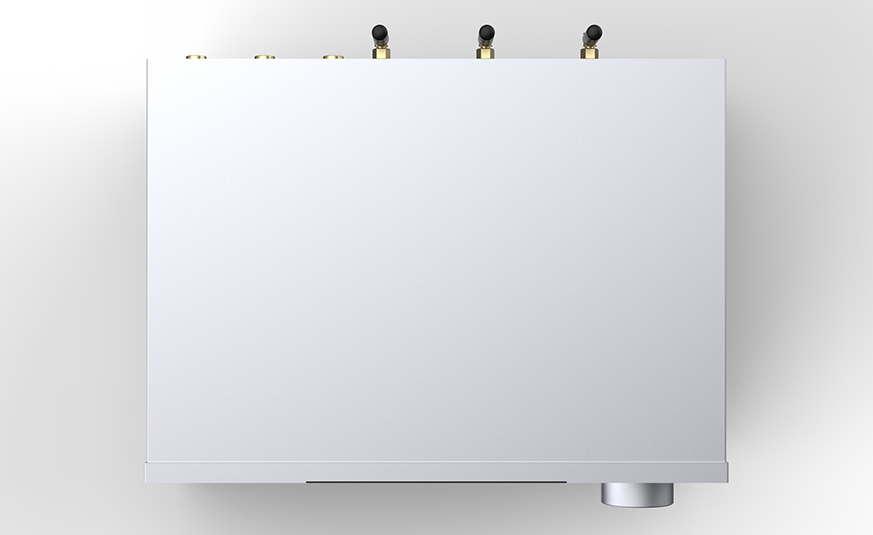

NEO S inherits NEO X's craftsmanship with aluminum thickened chassis and 5-inch OLED
Built in with SSD, dual ES9068 DAC, dual digital/analog power supply modules and toroidal power supply
Характеристики
Chassis
Aviation aluminum alloy
CPU
Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU
ARM Mali-G51 MP3
WiFi
2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet
RJ-45(10/100/1000Mbps)
HDMI Output
2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output)
Support audio passthrough
Video Decoding
4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
Audio Decoding
Support true-hd HD audio passthrough, stereo PCM decoding
Built-in DAC audio decoding: support up to stereo DSD512, PCM 768KHz 32Bit, MQA
USB Audio Input
USB audio compatible system: Windows(7,10), Mac, Android
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Power Supply
AC 110~240V 50/60Hz
USB
USB3.0*1, USB2.0*2
SATA
Internal SATA3.0 (3.5-inch HDD bay, hard drives are not included)
Dimensions
213(L)*292(W)*101(H)mm
Display
5-inch OLED HD touch screen
DAC
ESS 9068*2
Internal SSD
256G SSD (M.2 SATA 3.0 2280, up to 1TB)
Bluetooth Audio Input
CSR8675 flagship Bluetooth audio module
BT5.0 Support mainstream lossless audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC

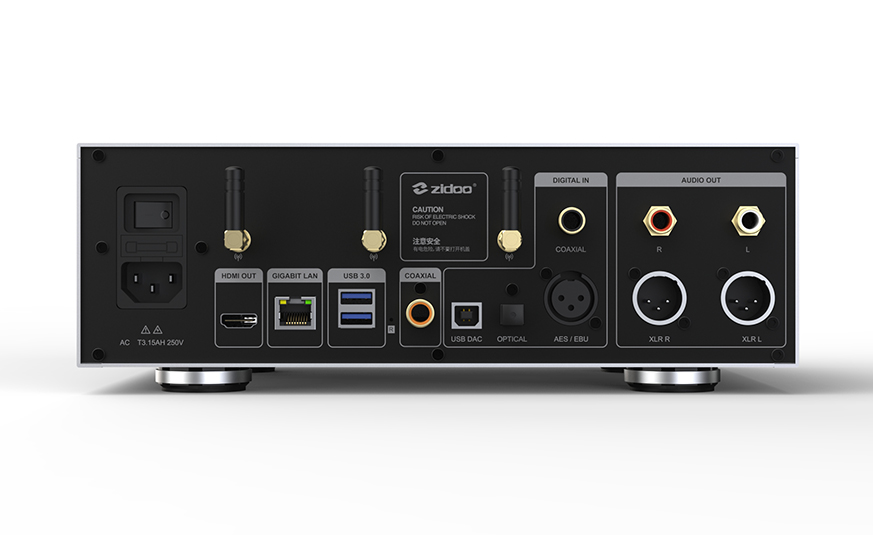

Digital Audio Input
USB DAC IN, AES/EBU input, Coaxial input, Optical input
Digital Audio Output
Coaxial output, HDMI output, USB Audio output, Bluetooth output
Analog Audio Output
Preamp output: XLR(balanced), RCA
Headphone amplifier output: 4.4mm balanced, 6.3mm single-ended
Headphone Impedance
16-300Ω(low-gain mode: 16-32Ω; high-gain mode: 32-300Ω)
XLR(balanced) Output
Output Level(Vrms): 4.1 Vrms
THD+N: -118dB
Noise: 2uVrms
SNR: 120dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -120dB(1kHz,Fs=44.1kHz)
DNR: 119dB
RCA(single-ended) Output
Output Level(Vrms): 2.16 Vrms
THD+N: -116dB
Noise: 2.5uVrms
SNR: 119dB(20Hz-20kHz)
Frequency Response: ±0.258dB(20Hz-20kHz)
Crosstalk: -130dB(1kHz,Fs=44.1kHz)
DNR: 118dB
Headphone 6.35mm Single-Ended Output(low-gain mode)
Output Level(Vrms): 1.5Vrms
Output Power/Impedance: 138mW/32Ω
THD+N: -114dB
Noise: 3.2uVrms
SNR: 116dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -128dB(1kHz,Fs=44.1kHz)
DNR: 115dB
Headphone 6.35mm Single-Ended Output(high-gain mode)
Output Level(Vrms): 2.7Vrms
Output Power/Impedance: 47mW/300Ω
THD+N: -114dB
Noise: 3.5uVrms
SNR: 118dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -132dB(1kHz,Fs=44.1kHz)
DNR: 118dB
Packing List
Remote control*1, Power cable*1, Antennas*3, Product manual*1
