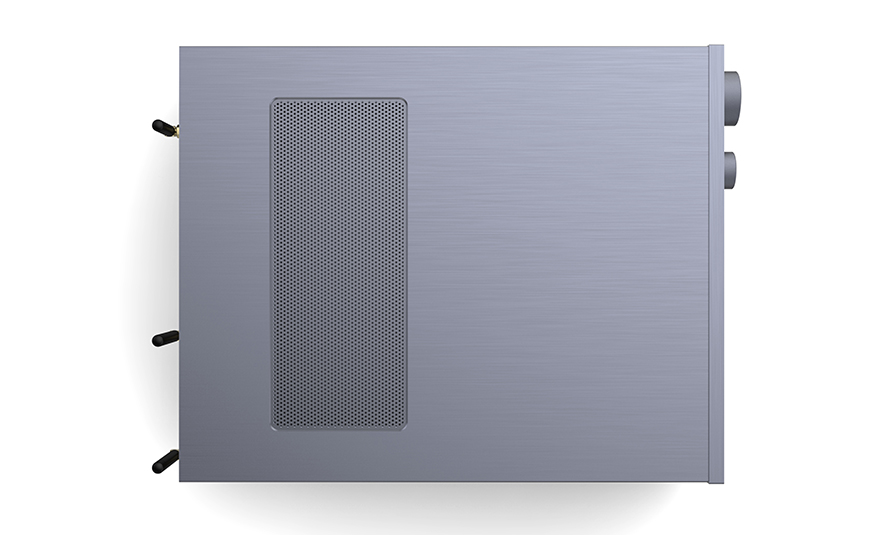

4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X
4K Hi-end Media player NEO X

4K Hi-end Media player NEO X

Модель: NEO X

Zidoo is dedicated to explore leading technologies for stunning audio-visual experience

NEO X is a fruit of 4-year development, with 1000+ hardware and software improvements

We can hardly define the name of this product exactly

because there is no similar product across the industry yet

Its advent is about to open a new era of audio/video player and create a new benchmark



NEO X is a high-end audio-visual integrated solution for audiophile to

solve cumbersome devices connection and equipment matching problems

Support 4K@60Hz UHD image quality and Dolby Vision high dynamic range technology

Top materials and luxurious components including double toroidal linear

power supplies, flagship ES9038Pro DAC chip and Hi-End digital decoder solution

Built-in with deeply customized, easy-to-use system and powerful music apps

Характеристики
Chassis Aviation aluminum alloy
CPU Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU ARM Mali-G51 MP3
WiFi 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet RJ-45*1 (10/100/1000Mbps)
HDMI Output 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output) Support audio passthrough
Video Decoding 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
Audio Decoding Support true-hd HD audio passthrough, stereo PCM decoding Built-in DAC audio decoding: support up to stereo DSD512 , PCM 768KHz 32Bit, MQA
USB Audio Input USB audio compatible system: Windows(7,10), Mac, Android Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Power Supply AC 110~240V 50/60Hz (dual linear power supply)
USB USB3.0*1, USB2.0*2

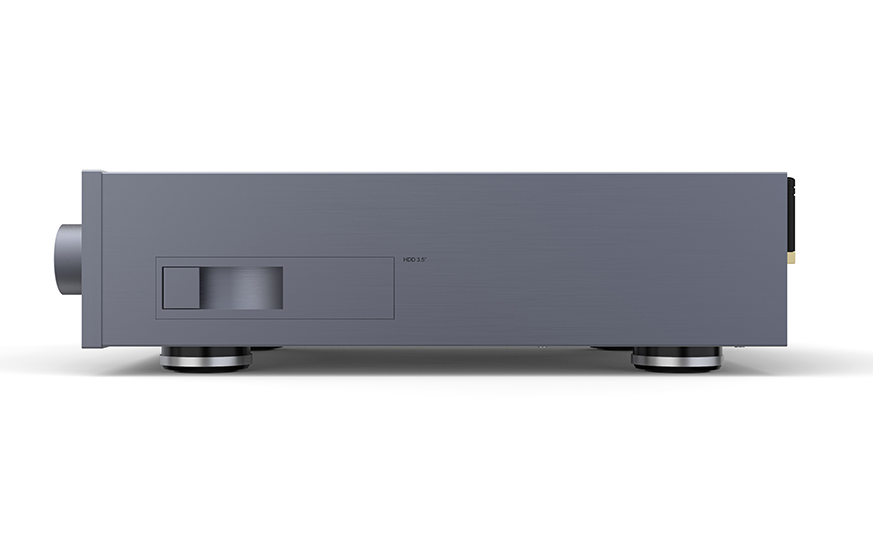

SATA Internal SATA3.0 (3.5-inch HDD bay, hard drives are not included)
Dimensions 395mm*291mm*110mm
Display 5-inch OLED HD touch screen
DAC ES 9038Pro
Bluetooth Audio Input CSR8675 flagship Bluetooth audio module BT5.0 Support mainstream lossless audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC

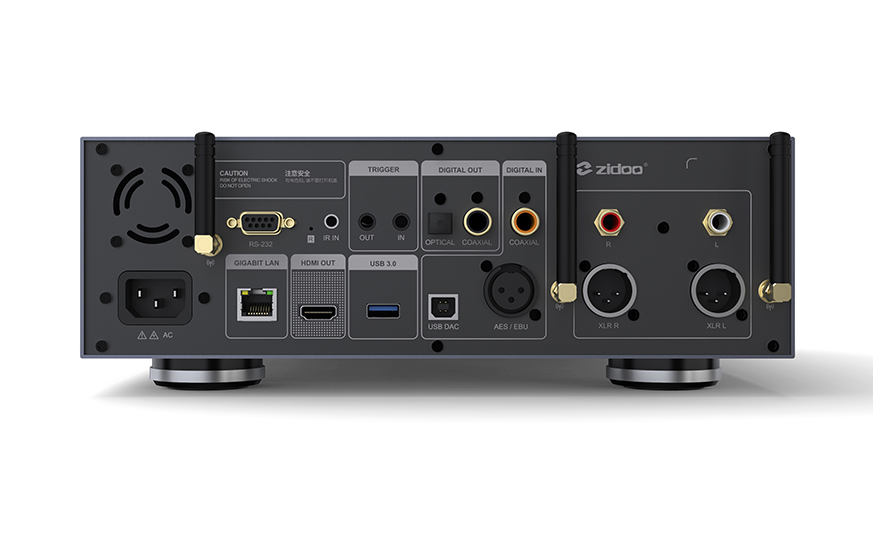

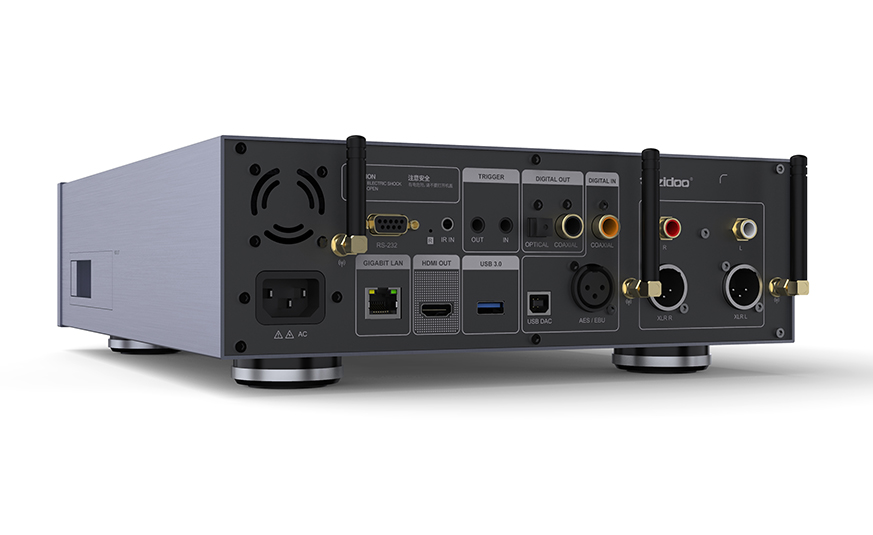

Digital Audio Input USB DAC IN*1, AES/EBU input*1, Coaxial input *1
Digital Audio Output Optical output*1, Coaxial output*1
Analog Audio Output Preamplifier output: XLR(balanced)*1, RCA*1 Headphone amplifier output: 4.4mm balanced*1, 6.3mm single end*1
Headphone Impedance 16-300Ω (low-gain mode: 16-32Ω/ high-gain mode: 32-300Ω)
XLR(balanced) Output Output Level: 4.1 Vrms THD+N: -110dB（0.00031%） Noise: 2uVrms SNR: 118dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -126dB(1kHz,Fs=44.1kHz) DNR: 118dB
RCA(single-ended) Output Output level: 2.2 Vrms THD+N: -109dB（0.00035%） Noise: 2.6uVrms SNR: 115dB(20Hz-20kHz) Frequency response: ±0.258dB(20Hz-20kHz) Crosstalk: -132dB(1kHz,Fs=44.1kHz) DNR: 114dB
Headphone 6.35mm Single-Ended Output(low-gain mode) Output level: 1.5Vrms Output Power/ Headphone impedance: 110mW/32Ω THD+N: -108dB（0.0004%） Noise: 3.2uVrms SNR: 112dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -128dB(1kHz,Fs=44.1kHz) DNR: 110dB
Headphone 6.35mm Single-Ended Output(high-gain mode) Output level: 2.6Vrms Output Power/ Headphone impedance: 42mW/300Ω THD+N: -108dB（0.0004%） Noise: 3.3uVrms SNR: 114dB(20Hz-20kHz) Frequency response: ±0.25dB(20Hz-20kHz) Crosstalk: -132dB(1kHz,Fs=44.1kHz) DNR: 108dB
Packing List Remote control*1, Power cable*1, Antennas*3, Product manual*1
